Marsh Stencil Cutter

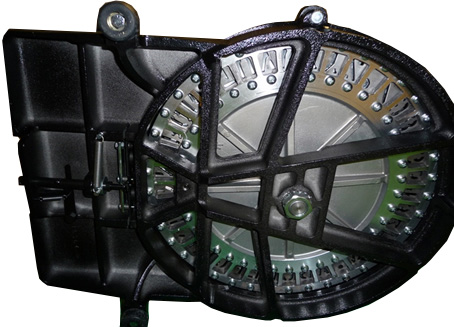

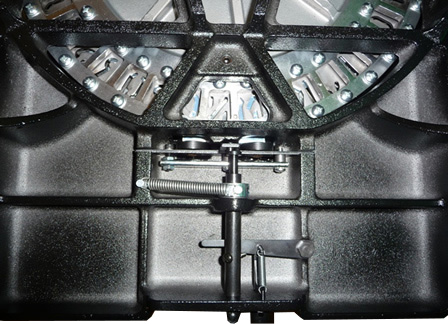

Model R, R5, S, H, & Q Underside
Main Page, Name Plate Down, Top Cover, Feed Wheels, Underside
| RP01A-R | Cap, hex head (1") |
| RP01A-SHQ | Cap, hex head (1/4", 1/2", 3/4") |
| RP01D-SHQ | Nut, hex jam |
| RP01PL-H | Plate, table (1/2") Not in pictures. |
| RP01PL-Q | Plate, table (1/4") Not in pictures. |
| RP01PL-S | Plate, table (3/4") Not in pictures. |
| RP01X-H | Base, with shaft and plate (1/2") |
| RP01X-Q | Base, with shaft and plate (1/4") |
| RP01X-R | Base, with center shaft (1") |
| RP01X-S | Base, with shaft and plate (3/4") |
| RP15 | Roller assy, lower feed |
| RP1503B | Screw, cap hex head |
| RP1503C | Washer |
| RP15C | Bar, adjustment |
| RP15D | Spacer |
| RP15G | Screw, round head slotted |
| RP15N | Nut, hex jam |
| RP16A | Eccentric shaft stop pin |
| RP16D | Stud, spring |
| RP16E | Collar, spring stud |
| RP16G | Cap, eccentric shaft handle |
| RP16-R | Shaft assy, eccentric (1") |
| RP16S | Spring, lower feed roll |
| RP16-SHQ | Shaft assy, eccentric (1/4", 1/2", 3/4") |
| RP16W | Washer |
| RP17 | Button, release shaft |
| RP17S | Spring, release button |
| RP18 | Pawl, stop |
| RP18A | Screw, stop pawl |
| RP18B | Pin, release button |
| RP19A | Wick, center shaft oil |
| RP19W1 | Washer |
| RP19W2 | Washer |
| RP33101 | Shaft, center (1/4", 1/2", 3/4") |
| RP38 | Screw, slot flat head |
| RP38A | Nut |
| RP38B | Washer, lock internal tooth |
| RP42 | Screw, set socket flat |
| RP51N | Nut |
| RP77 | Foot, rubber |
| RPJ500-0011-008 | Screw, phillips flat head (1/4", 1/2", 3/4") |
