MSSC efi Stencil Ink System

An Eco-Friendly Ink.

A World-Class Stenciling System.

Trust Marsh® to Help You Make Your Mark on Business, Not the Environment.

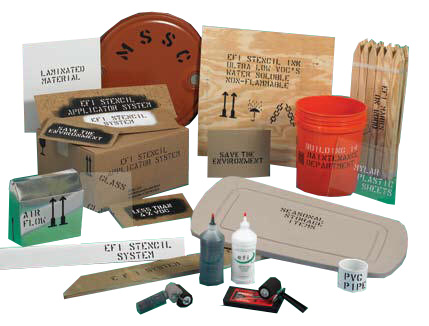

Marsh®, the company that brings you leading marking, stenciling, sealing, and coding solutions, now offers a stenciling option that is both highly effective and environmentally friendly. The efi stenciling system makes clear, lasting marks on a wide variety of porous and non-porous surfaces, without leaving a negative impression on the environment.

Benefits of the efi stenciling system include:

  • Ultra-low VOC (less than 4%) content inks are safer for the environment and the operator applying them
  • Creates sharp, long-lasting marks on a wide variety of porous and non-porous surfaces
  • Water-soluble inks only require soap and water for cleanup – no separate solvents required
  • Stencil marks are fast drying, permanent, as well as fade and sunlight resistant

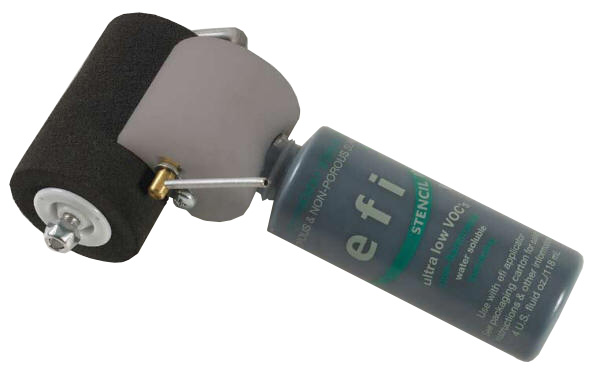

  • efi ink may be applied with the custom-designed applicator (recommended) or can also be applied with the RM20 roller and RM50 pad system

Since this is also non-flammable; they are safer to use and easier to ship.

Call for more info on the Electronic Stencil Cutter or the Marsh Super Size Stencil Cutter machines.

Description

Case

 Item Number
1.5” efi applicator 1 180M-70150
3” efi applicator 1 180M-70300
Replacement Roller 1.5” 24 180P-RM1015
Replacement Roller 3” 24 180P-RM1030F
efi Ink, 4 oz Black 12 180C-70987

Step 1

Completely moisten the foam roll attached to the efi roller assembly and squeeze out the excess water. Shake the 4 oz bottle vigorously. Hold the 4 oz bottle in the upright position and remove the cap. Hold the efi applicator head assembly and install by turning the bottle counter-clockwise until bottle is firmly in place. Rotate lever 90 degrees from “off” position.

Step 2

Hold the roller at a 45 degree angle on a piece of stencil-board and roll it back and forth while gently squeezing the bottle several times until the ink saturates the roll. Make sure the roller is inked uniformly. Rotate the lever to the “off” position.

Step 3

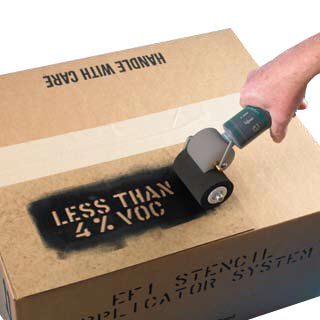

Place the cut stencil on the surface to be marked. Gently roll the efi inked roller back and forth until the cutout characters are uniformly inked. Do not apply extra pressure when stenciling. Replace roller cover when applicator is not in use.

VOC: Volatile Organic Compounds (USA, EU)

Need help finding the best ink from Marsh? Click here.

Need a quick way to determine the best ink for the applicator? Click here.
